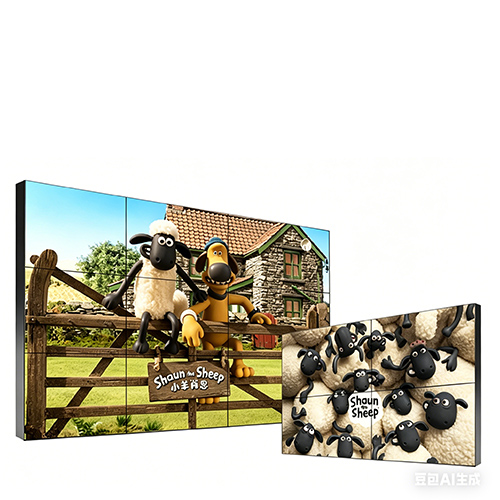

The LCD screen wall can be combined in different layouts to match various installation spaces and content requirements. Whether the project needs a wide horizontal screen, a vertical information display, a square display wall, or a large matrix screen, the layout can be adjusted according to the site.
Common splicing methods include:
This makes the LCD screen wall suitable for command centers, monitoring rooms, exhibition halls, shopping malls, corporate showrooms, and meeting spaces.
A narrow bezel helps reduce the visual interruption between screens. When multiple LCD panels are spliced together, the screen wall can present a more complete image with stronger visual impact.
Why narrow bezel matters:
The LCD screen wall supports multiple signal input options, including HDMI, DVI, VGA, and BNC. This makes it easier to connect computers, cameras, media players, matrix switchers, monitoring systems, and control equipment.
Supported input types include:
This is useful for security monitoring, command centers, meeting rooms, exhibition systems, and commercial display projects that need to connect different signal sources.
The LCD screen wall provides a 178° horizontal and vertical viewing angle. This helps maintain clear visibility when viewers stand at different positions in front of the screen wall.
Suitable for:
The LCD screen wall can display images, videos, monitoring feeds, charts, data dashboards, presentation materials, and advertising content clearly. With full HD single-screen resolution and flexible splicing layouts, it can create a larger visual display area for detailed content.
Display content can include:
The product structure is designed for project installation. Based on the image information, the display supports multiple external sizes and cabinet thicknesses, making it easier to plan wall space, bracket structure, and installation layout before the project starts.
Installation advantages:
The LCD screen wall can be configured with multiple screen sizes. Buyers can choose the right size according to wall space, viewing distance, layout plan, and project budget.
| Screen Size | External Width | External Height | Thickness |
|---|---|---|---|
| 43 inch | 961.7 mm | 550.1 mm | 38 mm |
| 46 inch | 1029.2 mm | 538.5 mm | 73.9 mm |
| 49 inch | 1088 mm | 620 mm | 60 mm |
| 50 inch | 1115 mm | 683.8 mm | 37.2 mm |
| 55 inch | 1225 mm | 696 mm | 49 mm |
Note: The thickness shown above does not include hooks or protruding parts. Final dimensions may vary according to bracket, cabinet hook, installation structure, and customized project requirements.
Technical Specifications
Item Specification Product Name LCD Screen Wall Product Type LCD splicing screen wall / LCD video wall solution Available Sizes 43 / 46 / 49 / 50 / 55 / 65 inch options Splicing Methods Horizontal, vertical, four-screen array, nine-screen array, customized matrix Display Resolution Full HD single-screen display, customized total resolution by layout Bezel Design Narrow bezel Viewing Angle 178° horizontal / 178° vertical Image Display High-definition image and video display Signal Input HDMI / DVI / VGA / BNC Remote Control RS485 supported Installation Wall-mounted / bracket / cabinet / customized engineering installation Application Control room, monitoring center, meeting room, exhibition hall, shopping mall, showroom, command center Customization Screen size, layout, bracket, signal system, processor, cabinet, installation method, packaging, OEM / ODM Application Scenarios
Security Monitoring Rooms
The LCD screen wall can display multiple camera feeds, alarms, maps, and monitoring data at the same time. It is suitable for property monitoring, factory security, campus security, city surveillance, and building control rooms.
Command and Dispatch Centers
Command centers can use the screen wall to display maps, operation data, emergency information, traffic conditions, equipment status, and real-time video feeds. The large-screen layout helps teams view key information more clearly.
Meeting Rooms and Conference Halls
For meeting rooms, the LCD screen wall can show presentations, charts, videos, remote meeting content, project reports, and corporate information. A multi-screen layout can create a more professional meeting environment.
Exhibition Halls and Corporate Showrooms
Exhibition halls and showrooms can use the screen wall to display brand videos, product demonstrations, company history, technical strengths, and visual storytelling content.
Shopping Malls and Commercial Spaces
Shopping malls and commercial buildings can use LCD screen walls for brand advertising, event promotion, wayfinding, tenant information, public notices, and large-format visual display.
Transportation and Public Information Areas
Transportation hubs can use the screen wall for passenger information, route guidance, public announcements, surveillance display, and operation management.
Customization Options
RSXD can provide customized LCD screen wall solutions for system integrators, engineering contractors, distributors, commercial display buyers, and public project operators.
Available customization options include:
- Screen size selection
- Splicing layout planning
- Narrow bezel configuration
- Wall-mounted bracket or cabinet structure
- HDMI / DVI / VGA / BNC signal configuration
- Video wall processor or matrix system
- RS485 control configuration
- On-site installation support
- Project wiring and layout suggestions
- Packaging customization
- OEM / ODM support for bulk orders
Why Choose RSXD LCD Screen Wall?
RSXD provides LCD video wall products and customized commercial display solutions for monitoring, command, meeting, exhibition, retail, and public information projects. For LCD screen wall projects, RSXD can help buyers choose the right screen size, splicing layout, signal input method, mounting structure, and installation plan according to the real project site.
RSXD advantages:
- LCD splicing screen and commercial display supply experience
- Multiple screen size options for different display wall layouts
- Flexible horizontal, vertical, 2×2, 3×3, and customized splicing methods
- Multi-signal input support including HDMI, DVI, VGA, and BNC
- Narrow bezel design for cleaner large-screen display
- 178° wide viewing angle for meeting and monitoring environments
- On-site installation support for engineering projects
- OEM / ODM customization for distributors and project buyers
