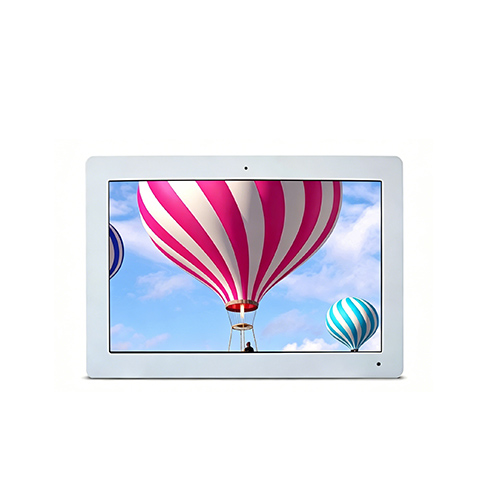

Outdoor Wall-mounted Advertising Machine
Outdoor Wall-mounted Advertising Machine

Outdoor Wall-mounted Advertising Machine

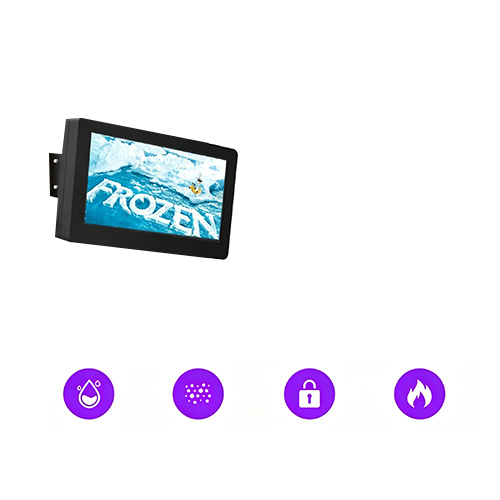

Product Advantages
Product Advantages
All-outdoor waterproof, dustproof, anti-theftand explosion-proof;
outdoor anti-corrosion service life of over 8 years.
Fully modular design for easy installation
and maintenance.
AR anti-glare glass with high light transmittance,
low reflectivity and UV resistance.

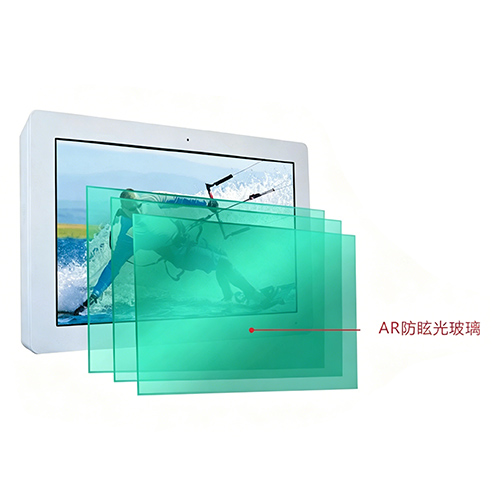

AR Anti-Glare
AR Anti-Glare
Adopthigh-transmittance anti-glare AR laminated glass to improve the visibility of the display screef the display screen and ARantlig

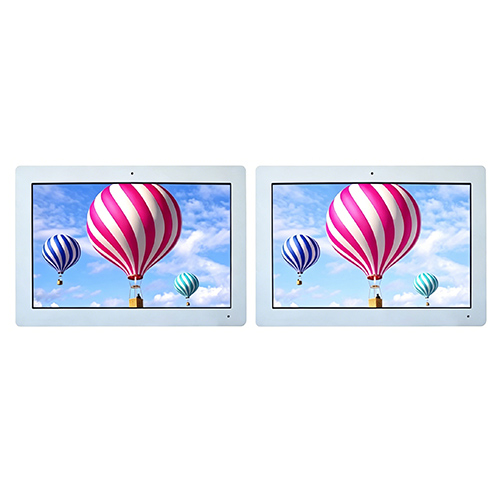

Auto Brightness Adjustment Technology
Auto Brightness Adjustment Technology
Outstanding performance under high lights,better picture quality at ordinary times,clearer presentation

In dim light or evening, automatically reduce brightness, no glare, still bright and vivid, high detail restoration

Under high light contrast, automatically adjust high brightness, excellent outdoor performance, colors still brilliant

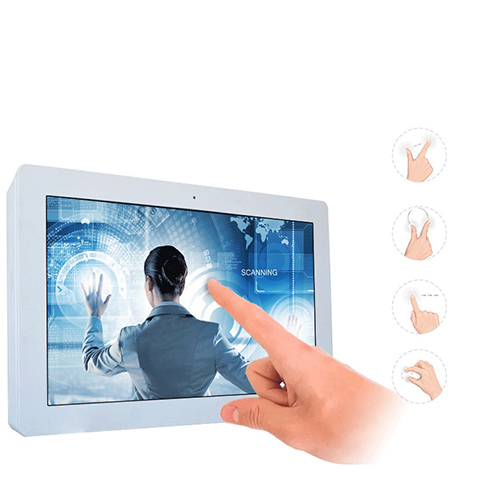

CustomizableMulti GestureTouch
Customizable Multi Gesture Touch
Provides smooth touch experience, supports multi-touch, allows multiple people to operate on the screen, feels fast response and sensitivity, more stable touch, and enjoys the rich life brought by touch screen.

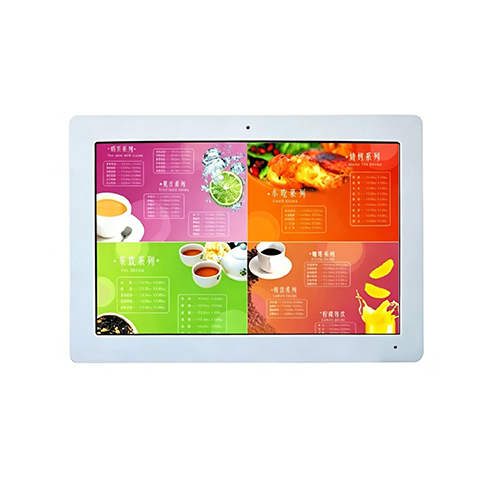

Easily Split Screen, Split as You Wish
Easily Split Screen, Split as You Wish
2-split,3-split,multi-split,synchronous playback, horizontal & vertical playback, split as you wish, smart future enjoyment.

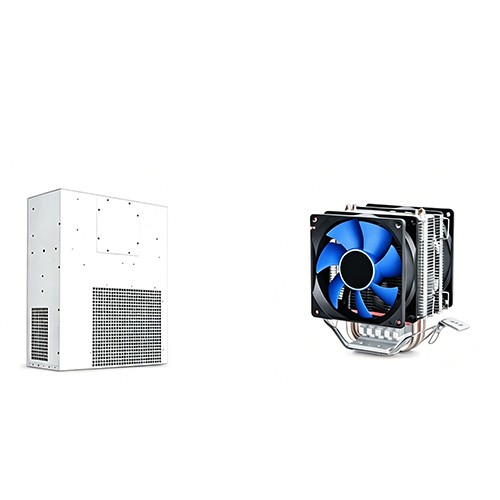

Intelligent Temperature Management System
Intelligent Temperature Management System
Air Conditioning Type
Efficient integrated air conditioner with eco-friendly refrigerant for better energy conservation and environmental protection. Intelligent integration ensures constant temperature operation inside the machine.

Air-cooled Type
Adopts centrifugal fan with simple maintenance, stable performance and low power consumption. High-precision filtration system keeps the inside of the cabinet clean.
模型 21.5英寸 32英寸 43英寸 49英寸 55英寸
面板规格 负债类型 电子照明设备 环球照明
显示屏尺寸(毫米) 478*269 697*392 941*530 1074*604 1210*681
显示比例 16:9
解决 1920*1080
布莱 1500cd/㎡ 2000-2500cd/㎡
解决 3500:1
视角 178°(水平)/178°(垂直)
响应时间 6毫秒
消费 50000H
主板



中央处理器 Android RK3288 或 X86 芯片
争议设备 1G/2G/4G/8G…,DDR3
内存 8G/16G/32G/64G/128G/256G等
操作系统 Android/Windows
视频格式 MPG、MPG-1、MPG-2、MPG-4、AVI、MP4、TS、MKV、WMV
图片格式 GIF、JPEG、PNG、BMP
音频输出 8Ω10W * 2
其他格式 MP3、24位线性PCM7.1、PDF/RSS新闻/天气预报
网络方法 局域网(LAN)、无线网络(WiFi)
更新方法 网络远程更新、USB驱动器更新
内容管理系统 可控全屏、分屏播放(可创建多屏显示,包括完整区域、日历区域、视频区域、图片区域、字幕区域等),可任意分割,自定义屏幕显示布局)
程序升级 远程升级,远程控制升级
开/关 支持设置任意时间段
选修的 网络方法 4G模块/4G路由器无线网络
触摸式 G+F 腰带屏/G+G 腰带屏
工作环境 工作温度 0℃~+50℃(任选配番茄,工作温度范围为-20℃~+50℃)
储存温度 -10℃~+60℃
工作湿度 10%~90%
储存潮气 5%~95%
噪音 <65分贝
机械辅助

仅供参考

机器卡住H*W*D(mm) 440*640*150 560*860*150 690*1100*150 760*1230*150 840*1370*150
净重(公斤) 30 40 65 70 75
包装尺寸(高*宽*深)(毫米) 640*940*300 760*1160*300 890*1400*300 960*1530*300 1040*1670*300
毛重(公斤) 50 60 90 100 105
消耗 输入电压 交流110-240伏,50/60赫兹
电流损耗(瓦) ≤180 ≤230 ≤300 ≤400 ≤450
模型 65英寸 75英寸 86英寸 98 英寸
面板规格 负债类型 环球照明
显示屏尺寸(毫米) 1429*804 1651*929 1896*1066 2159*1215
显示比例 16:9
解决 3840*2160
布莱 2000-2500cd/㎡
解决 3500:1
视角 178°(水平)/178°(垂直)
响应时间 6毫秒
消费 50000H
主板



中央处理器 Android RK3288 或 X86 芯片
争议设备 1G/2G/4G/8G…,DDR3
内存 8G/16G/32G/64G/128G/256G等
操作系统 Android/Windows
视频格式 MPG、MPG-1、MPG-2、MPG-4、AVI、MP4、TS、MKV、WMV
图片格式 GIF、JPEG、PNG、BMP
音频输出 8Ω10W * 2
其他格式 MP3、24位线性PCM7.1、PDF/RSS新闻/天气预报
网络方法 局域网(LAN)、无线网络(WiFi)
更新方法 网络远程更新、USB驱动器更新
内容管理系统 可控全屏、分屏播放(可创建多屏显示,包括完整区域、日历区域、视频区域、图片区域、字幕区域等),可任意分割,自定义屏幕显示布局)
程序升级 远程升级,远程控制升级
开/关 支持设置任意时间段
选修的 网络方法 4G模块/4G路由器无线网络
触摸式 G+F 腰带屏/G+G 腰带屏
工作环境 工作温度 0℃~+50℃(任选配番茄,工作温度范围为-20℃~+50℃)
储存温度 -10℃~+60℃
工作湿度 10%~90%
储存潮气 5%~95%
噪音 <65分贝
机械参数参考



机器卡住H*W*D(mm) 960*1590*170 1190*1810*170 1340*2070*170 2340*1500*170
净重(公斤) 95 150 190 320
包装尺寸(高*宽*深)(毫米) 1160*1890*320 1390*2110*320 1540*2370*320 1700*2640*320
毛重(公斤) 135 200 250 390
消耗 输入电压 交流110-240伏,50/60赫兹
电流损耗(瓦) ≤700 ≤860 ≤1300 ≤2000
